Description:

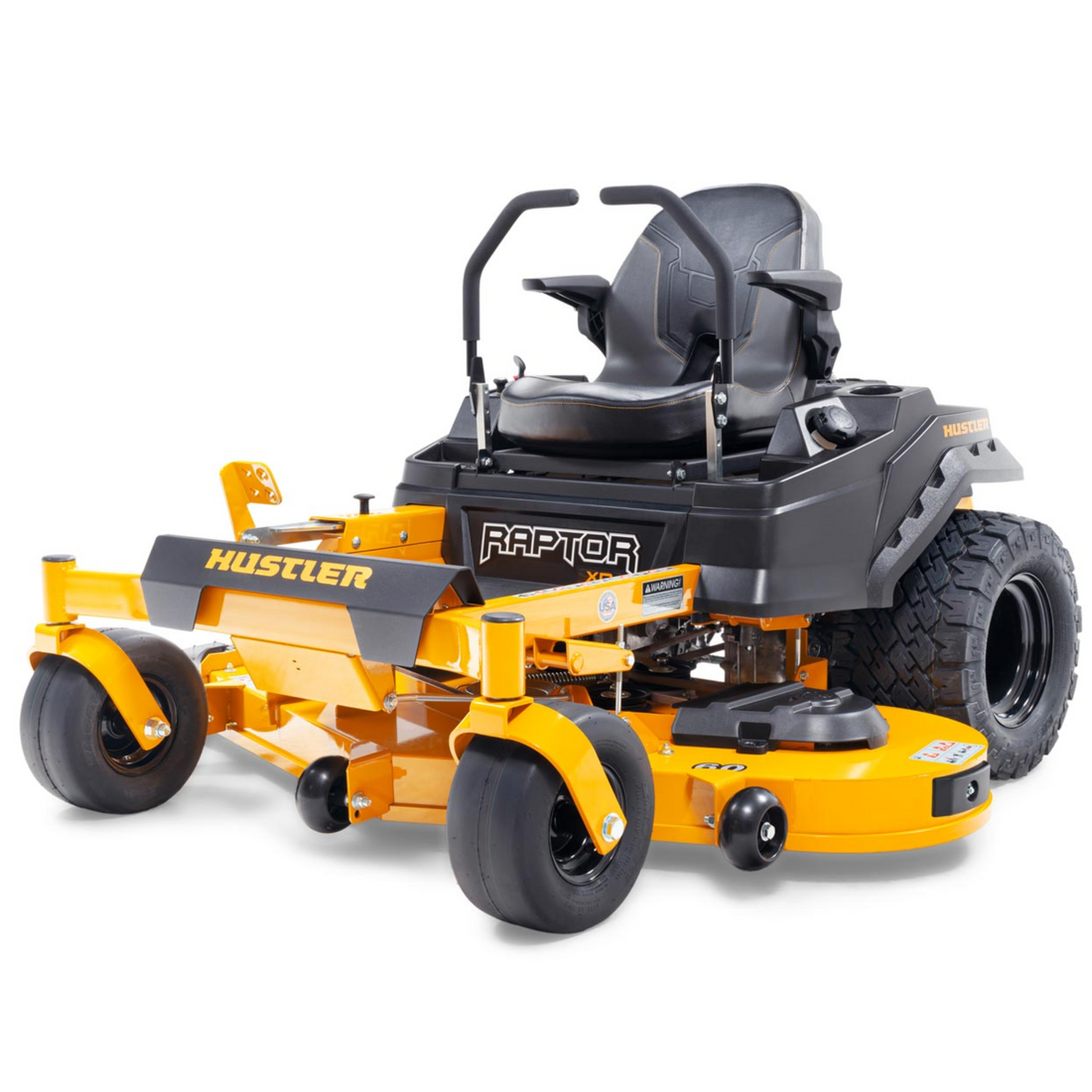

The Raptor® XD is the ideal zero-turn for homeowners with up to five acres of property. The up to 24hp Kawasaki® engine and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, we’ve spent decades and thousands of hours perfecting our durable fabricated decks that provide a crisp, clean cut-quality. Raptor XDs are backed by a 3yr / 300hr limited warranty.

Features:

• Welded Steel Deck
• Welded fabricated steel deck helps add durability and can extend the mower's life.
• Wider Stance
• Designed to provide ample room adding to the comfort for the operator.
• SmoothTrak Steering
• Precision control designed to help trim and maneuver easily around obstacles.
• Bolstered Seat
• Helps provide a comfortable ride with armrests and airflow to the back.
• Rubber Floor Mat
• Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.
• Fabricated Frame
• Continuous one-piece 1½ inch by 3 inch welded tubular frame.
• Foot-Operated Deck Lift
• Easily adjust the deck height between 1.5" - 4.5".
• Easy to Service
• Flip-up seat pan, removable floor pan, vented pulley covers.
• Exclusive BigBite Rear Tires
• We worked directly with the tire manufacturer on this design.
• Kawasaki® Power
• Powered by a V-Twin Kawasaki® Engine.

Specification:

Engine Specs:

• Manufacturer: Kawasaki FR691
• Horsepower: 23
• Displacement: 726cc
• Cooling: Air Cooled
• Warranty: 3 Year Warranty

Drive System:

• Type: Dual Hydrostatic
• Transmission: Hydro-Gear ZT-2800
• Fuel Capacity: 3 Gallons
• Ground Speed (FWD): Up to 7.5 mph
• Parking Brake: Patented Automatic

Deck:

• Cutting Width: 54"
• Cutting Height: 1.5" to 4.5"
• Deck Depth: 4.5"
• Deck Lift: Foot Operated
• Number of Blades: 3
• Blade Length: 18.50"
• Blade Tip Speed: 18,800
• Spindles: Aluminum with 1" shaft and double lip sealed ball bearings
• Deck Engagement: Ogura GT1.5
• Deck Material: Fabricated 11 Gauge Steel
• Spindle Mounts: Reinforced 7 Gauge Steel
• Impact Trim Area: 3/8" x 1" Steel Bar

Construction:

• Frame: 1.50" x 3" Steel Tubing
• Front Axle: Fabricated with Sealed Ball Bearings
• Front Caster Wheel: Sealed Ball Bearings
• Front Caster Fork: Fabricated 3/8" Steel

General:

• Seat: Premium Bolstered High-Back Seat with Armrests and Built-In Lumbar Support
• Cup Holder: Yes

Dimensions:

• Front Tire: 13x6.5
• Drive Tire: 20x12-12 BigBite
• Weight: 653 lbs
• Height: 43.7"
• Length: 71.1"
• Width with Chute Up: 58.5"
• Tire-To-Tire Width: 48.6"
• Acres Per Hour: 3.27

Warranty:

• Residential: 3 Year or 300 Hours

Width	Weight	Height	Length
0 Inch	653 Pounds	43.7 Inch	71.1 Inch
