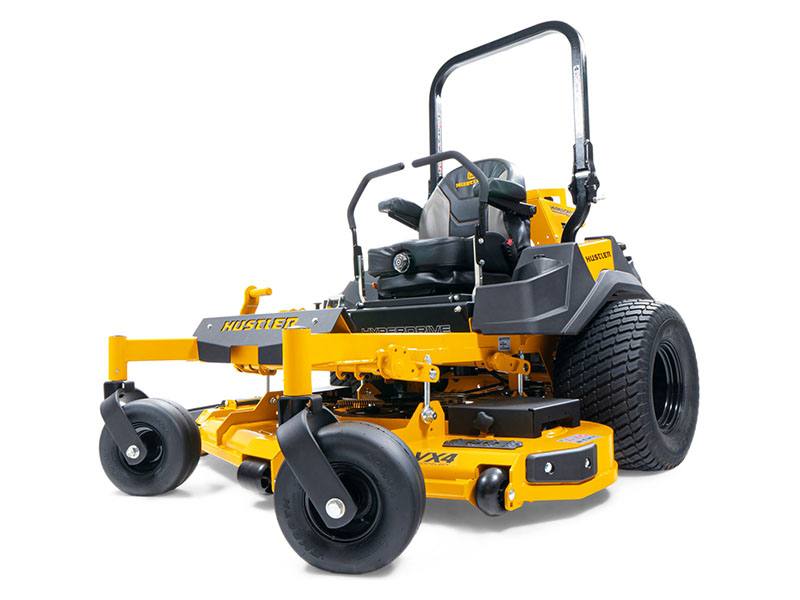

Hustler 943027 Lawnmower

Description:

The HyperDrive® features Hustler’s exclusive HyperDrive transmission system – the largest, most durable drive system in the industry. And, it’s backed by a 3,000 hour drive system warranty.

FEATURES

• HYPERDRIVE HYDRO SYSTEM: A Hustler® exclusive, industrial-grade pumps and high torque wheel motors, 3-gallon reservoir, oil cooler and hot oil shuttle.
• HYDRAULIC SYSTEM WARRANTY: 3000-Hour pump and motor warranty unmatched in the industry.
• LARGE DRIVE TIRE: Large 26" drive tires provide a smoother ride experience.
• VX4® DECK: Fabricated steel deck engineered to move more grass at high speeds while maintaining cut-quality.
• COMMERCIAL-GRADE TORQUE: Danfoss DDC-20 pumps and Parker TG wheel motors.
• FOOT OPERATED DECK LIFT: Easily adjust the deck height between 1”- 5.5” with your foot.
• I3M SUSPENSION SEAT: High-back seat with adjustable armrests and 3-inch suspension travel range.
• SMOOTHTRAK™ STEERING: Precision control designed to help trim and maneuver easily around obstacles.
• EASY SERVICEABILITY: Flip-up seat pan, removable floor pan and vented pulley covers for easy and simple maintenance.

SPECIFICATIONS

GENERAL INFORMATION

• Manufacturer: Hustler Turf Equipment
• Model Year: 2024
• Model: HyperDrive 72 in. Kawasaki FX1000 EFI 38.5 hp
• Model Code: 943027
• Color: Yellow

BODY

• Frame: 1.5 x 3 in. steel tubing
• Seat: I3M™ suspension
• Seat Adjustment: Adjustable armrests and back

DRIVETRAIN

• Drive Type: Dual hydrostatic
• Transmission: Danfoss DDC-20 with Parker TG wheel motors
• Travel Speed Forward: Up to 16 mph
• Wheels/Tires:Front caster wheel: Tapered wheel bearings and debris cap
• Front caster forks: Fabricated 1/2 in. steel
• Drive Tires: 26 x 14-12 in.
• Steering Tires: 13 x 6.5-6 in.
• Axles: Front - Fabricated with tapered roller bearings
• Parking Brake: Integrated with steering levers

ENGINE

• Engine Make: Kawasaki
• Engine Model: FX1000 EFI
• Cooling: Air
• Horsepower: 38.5 hp (Per SAE J1995, as rated by the engine manufacturer)
• Displacement: 999 cc
• Air Cleaner: Canister style
• Fuel Capacity: Dual fuel tanks, 12 gal.

HYDRAULICS

• Hydraulic System:Lines: Stainless steel Parker® Seal-Loc Technology
• Cooling: Oil Cooler with 9 in. fan
• Hydraulic Reserve Capacity: 3 gal.

MEASUREMENTS

• Length: 92 in.
• Width:With chute up: 78 in.
• Tire to tire: 60 in.
• Height:Without ROPS: 47.8 in.
• With ROPS: 73.5 in.
• Weight: 1,686 - 1,750 lb.
• Cutting Width: 72 in.
• Cutting Height: 1 - 5.5 in.

OPERATIONAL

• Deck Construction:Depth: 5.5 in.
• Trim side: 8.9 in.
• Impact trim area: Front of deck - 11 ga. formed bump bar, Side of deck - 1.5 x 0.375 in. steel bar
• Deck Material: Fabricated 7 ga.
• Deck Lift: Foot operated
• Deck Engagement: Electric PTO clutch
• Deck Discharge: Side
• Spindles:Material: Ductile cast iron with steel shaft and sealed ball bearings
• Mounts: Reinforced 7 ga. stamped disc
• Blades:Number of blades: 3
• Length: 24.5 in.
• Blade Tip Speed: 18,500

Working Area Capacity

• Productivity: 9.31 acres / hr.Number based on 80% efficiency. This rating is to account for actual mowing conditions including overlapping, turning, and terrain.

OTHER

• Includes: Cup holder
• Warranty:Engine: 3-year limited
• Limited: 5-year / 1,200 hr. (First 2 years no hr. limit)
• Pumps and motors: 5-year / 3,000 hr.
