Description:

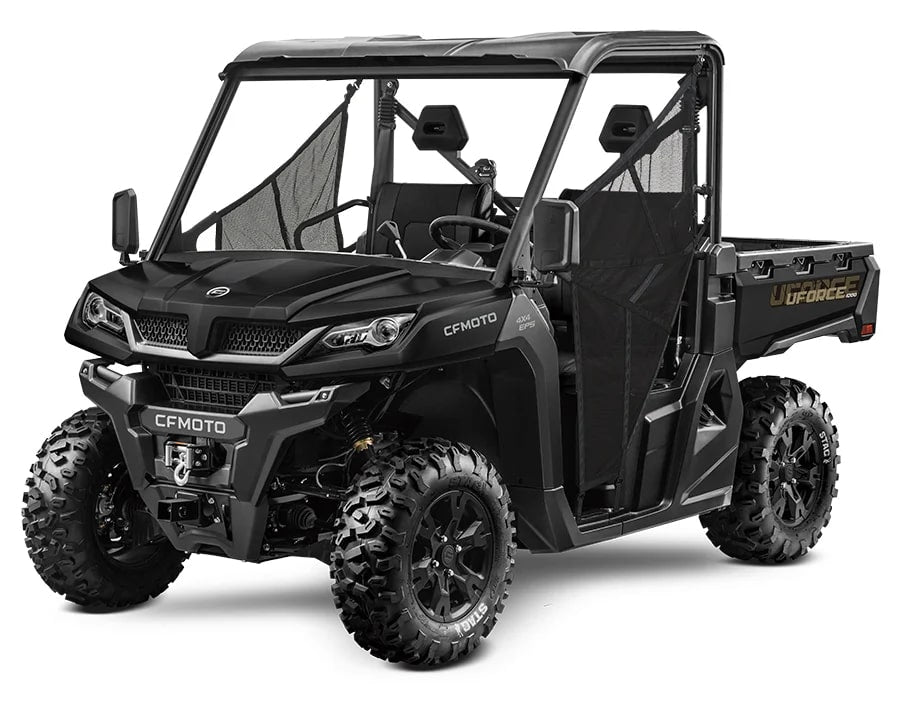

Built to get stuff done, the UFORCE 1000 delivers on capacity and power. You get a roomy bench seat for three adults, a 1,000-lb. capacity gas-assisted tilting cargo box, a 10.6-gallon fuel tank, plus a high clearance suspension. ‘Nuff said.

Features may include:

• 963cc V-Twin

The 963cc V-twin features eight valves and a single overhead camshaft (SOHC). With electronic fuel injection (EFI) and efficient liquid cooling, this engine packs a punch, delivering an impressive 71 hp and exceptional medium and low-speed torque. It gives you a towing capacity of over 2500 pounds.

• Pulse™ Digital Display

The TFT (thin film technology) color display keeps you tuned into an array of engine vitals and comes with a Bluetooth call indicator.

• 1000 Lb. Capacity Cargo Box

In addition to its large capacity, the cargo box is equipped with a nitrogen gas-assisted dump box, which makes it easy to unload cargo quickly and efficiently.

• Suspension System

The combination of a front and rear double wishbone independent suspension with double-row tapered roller bearings and variable pitch hydraulic spring shocks enables you to handle rough terrain with improved comfort, more stability, and greater load-bearing capacity.

Specification:

Engine

• Type: V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve
• Displacement: 963cc
• Fuel System: Bosch® EFI
• Max Power: 71 HP @ 7000 RPM
• Max Torque: 54 LB-FT @ 6500 RPM
• Cooling System: Liquid cooled
• Starter: Electric

Drivetrain

• Transmission: CVTech® Automatic P/R/N/H/L
• Drivetrain: 2WD/4WD/4WD lock

Suspension

• Front Suspension: High clearance A-arm independent
• Rear Suspension: Double A-arm independent
• Front Shocks: Spring pre-load adjustable, oil damped
• Rear Shocks: Spring pre-load adjustable, oil damped

Brakes

• Front Braking System: Hydraulic disc with parking brake
• Rear Braking System: Hydraulic disc with parking brake

Wheels & Tires

• Front Wheel: 14” Cast aluminum alloy | Travel: 9"
• Rear Wheel: 14” Cast aluminum alloy | Travel: 9"
• Front Tire: 27" x 9" x R14 CST
• Rear Tire: 27" x 11" x R14 CST

Dimensions

• Wheelbase: 80.7”
• Length: 116”
• Width: 63.5”
• Height: 73”
• Ground Clearance: 11.4”
• Turning Radius: 13.4'
• Hitch/Type: 2”

Capacities

• Fuel Capacity: 10.6 gal.
• Towing Capacity: 2500 lbs.
• Cargo Capacity: 1000 lbs.

Weights

• Dry Weight: 1537 lbs.
• Winch Weight: 3500 lbs.

Color Options

• Colors: Nebula Black, Twilight Blue

Width	Weight	Height	Length
0 Inch	1537 Pounds	0 Inch	0 Inch
