Description:

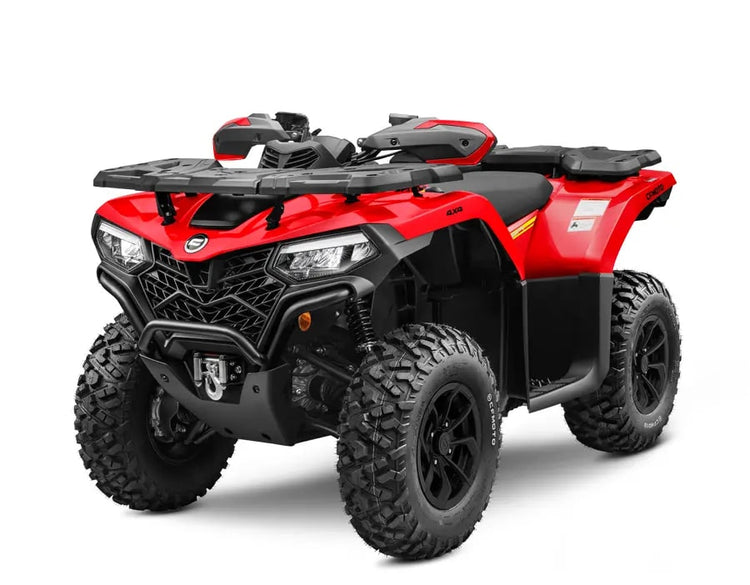

Ripping down a rugged trail. Hauling sacks of feed to the back lot. Plowing snow in the driveway. There’s nothing the CFORCE 500 can’t handle. Because this amazing value comes with all the features you need, standard, to do what needs to get done. And all at a price that will have you grinning from ear to ear.

Features may include:

• 3.5" LCD Display

The CFORCE 500 has a 3.5-inch digital gauge and all-new user interface, providing better readability for key rider information.

• 500cc Engine

Engine temperatures can climb during sustained low-rpm use, but the CFORCE 500 is engineered for comfort throughout your workday. Revised radiator design and improved cooling means leg area temperatures remain 25% lower than previous models. When it comes to long hours in the field, vehicle vibration is a critical factor that can wear you down. The CFORCE 500 has the lowest vibration in class across the entire torque range (vibration measured at handlebar grip, seat, and footrests).

• Electronic Power Steering

An electronic control unit interprets steering input and provides appropriate feedback with respect to speed. At low speeds you get more assistance — less at higher speeds.

• RideVision™ LED Lights

To ensure the best visibility, RideVision™ LED light technology is standard on the all-new CFORCE 500.

Specification:

Engine

• Type: Single cylinder, liquid cooled, 4-stroke, SOHC, 4-valve
• Displacement: 500cc
• Fuel System: EFI
• Max Power: 34 HP @ 6800 RPM
• Max Torque: 29 LB-FT @ 6000 RPM
• Cooling System: Liquid cooled
• Starter: Electric

Drivetrain

• Transmission: CVTech® Automatic P/R/N/H/L
• Drivetrain: 2WD/4WD/4WD lock

Suspension

• Front Suspension: Double A-arm independent
• Rear Suspension: Double A-arm independent
• Front Shocks: Spring pre-load adjustable, oil damped
• Rear Shocks: Spring pre-load adjustable, oil damped

Brakes

• Front Braking System: Hydraulic disc with parking brake
• Rear Braking System: Hydraulic disc with parking brake

Wheels & Tires

• Front Wheel: 12” Cast aluminum alloy | Travel: 7.5"
• Rear Wheel: 12” Cast aluminum alloy | Travel: 8.9"
• Front Tire: 25” x 8” x R12
• Rear Tire: 25” x 10” x R12

Dimensions

• Wheelbase: 50”
• Length: 80”
• Width: 44”
• Height: 45”
• Seat Height: 20”
• Ground Clearance: 10.3”
• Hitch/Type: 2”
• Turning Radius: 9.1'

Capacities

• Fuel Capacity: 4.5 gal.
• Rack Capacity, Front: 75 lbs
• Rack Capacity, Rear: 132 lbs
• Towing Capacity: 1350 lbs.

Weights

• Dry Weight: 713 lbs.
• Winch Weight: 2500 lbs.

Color Options

• Colors: Pearl White, Magma Red
