Description:

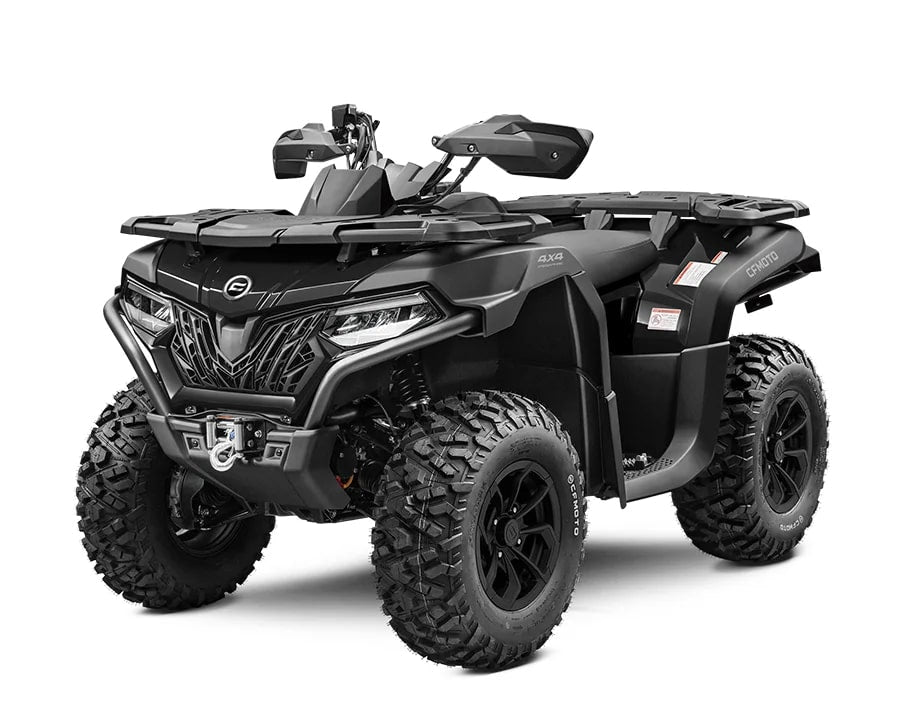

It’s what every homesteader needs. Winter, Spring, Summer and Fall—this one is always on duty. Fishing, hunting, working, plowing, mud-flinging, you can do it all. And it’s built like a tank. Just like every CFMOTO.

Specifications:

• Engine Type: Single cylinder, liquid cooled, 4-stroke, SOHC, 4-valve
• Displacement: 580cc
• Max Power: 44 HP @ 6500 RPM
• Max Torque: 37 lb-ft @ 6000 RPM
• Fuel System: EFI (Electronic Fuel Injection)
• Cooling System: Liquid cooled
• Drive: 2WD/4WD/4WD lock
• Transmission: CVTech® Automatic (P/R/N/H/L)
• Starter: Electric

Dimensions & Weight

• Length x Width x Height: 80” x 46.5” x 48”
• Wheelbase: 50.5”
• Dry Weight: 753 lbs.
• Ground Clearance: 10.6”
• Fuel Tank Capacity: 4.75 gal.
• Rack Capacity (Front/Rear): 75 lbs./100 lbs.
• Seat Height: 21”
• Turning Radius: 11.9’

Chassis

• Suspension:
• Front/Rear: Double A-arm independent
• Wheels:
• Front/Rear: 12” cast aluminum alloy
• Tires:
• Front: 26" x 8" x R12
• Rear: 26" x 10" x R12
• Shocks: Spring pre-load adjustable, oil damped
• Brakes: Hydraulic disc (front/rear) with parking brake
• Wheel Travel: 6.3" (front) / 8.3" (rear)

Standard Equipment

• Hitch Receiver: 2”
• Towing Capacity: 1500 lbs.
• Winch: 3500 lbs.
