Description:

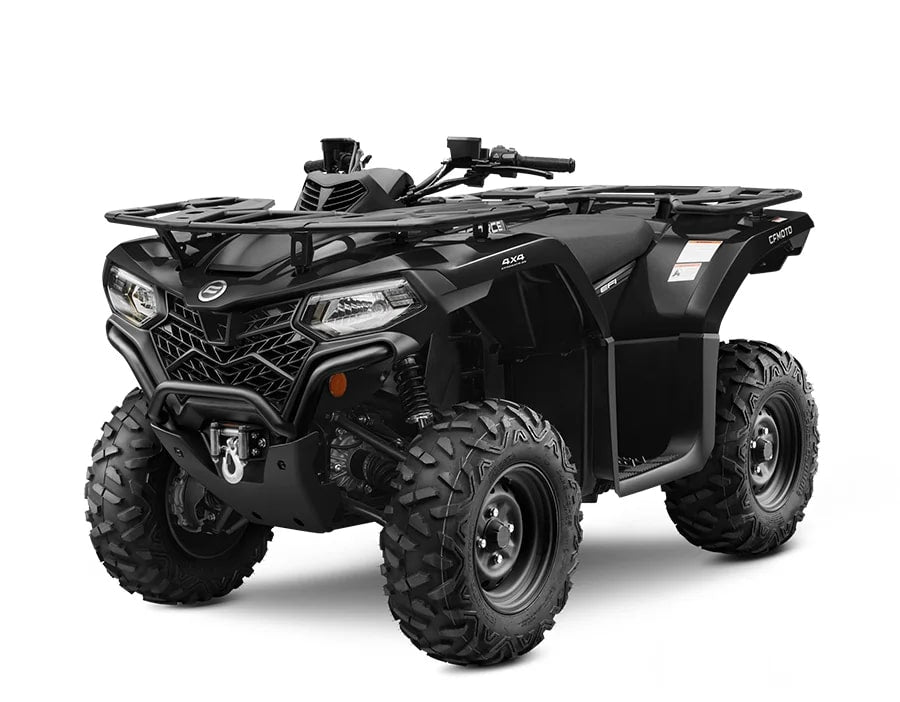

If you’re looking for an everything you need, nothing you don’t kind of machine, there’s nothing better than the CFORCE 400. This mid-size, hard-working go-getter may just be the lowest priced ATV around. The rugged steel rims and steel racks are just asking to be loaded up with gear. Surprising extras like LED headlight accents, a 12-volt accessory plug, USB port, 2” receiver, and an LCD display make this great value even better.

Specifications:

• Engine Type: Single cylinder, liquid cooled, 4-stroke, SOHC, 4-valve
• Displacement: 400cc
• Max Power: 30 HP @ 7200 RPM
• Max Torque: 22 lb-ft @ 6000 RPM
• Fuel System: EFI (Electronic Fuel Injection)
• Cooling System: Liquid cooled
• Drive: 2WD/4WD/4WD lock
• Transmission: CVTech® Automatic (P/R/N/H/L)
• Starter: Electric

Dimensions & Weight

• Length x Width x Height: 80” x 44” x 45”
• Wheelbase: 50”
• Dry Weight: 730 lbs.
• Ground Clearance: 9.8”
• Fuel Tank Capacity: 4.5 gal.
• Rack Capacity (Front/Rear): 75 lbs./132 lbs.
• Seat Height: 20”
• Turning Radius: 9.1’

Chassis

• Suspension:
• Front/Rear: Double A-arm independent
• Wheels:
• Front/Rear: 12” steel
• Tires:
• Front: 24" x 8" x R12
• Rear: 24" x 10" x R12
• Shocks: Spring pre-load adjustable, oil damped
• Brakes: Hydraulic disc (front/rear) with parking brake
• Wheel Travel: 7.5" (front) / 8.9" (rear)

Standard Equipment

• Hitch/Receiver: 2”
• Towing Capacity: 1350 lbs.
