Description

Taking A Stand For Homeowner Performance

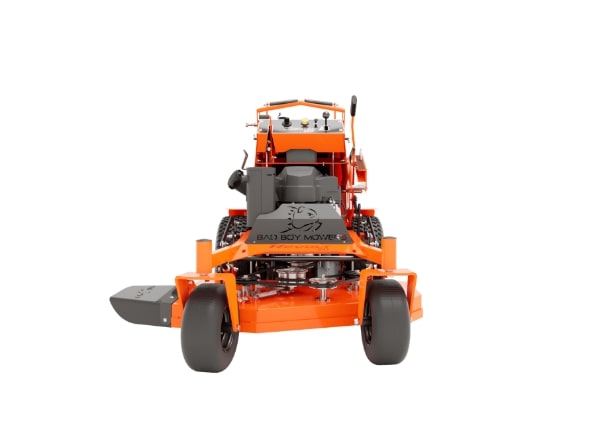

Finally, a Stand-On zero-turn mower that homeowners can get their hands and wallet around. The All-New Revolt SD Stand-On Residential Zero Turn Lawn Mower is available in gate-entering 34" and 42" deck width sizes. It's the perfect mower for tight fits and a cleaner cut, and since it's a Bad Boy, it's built to stand up to anything else out there.

The Homeowners Perfect Stand-on Mower

Dual High-Performance Hydro-Gear Integrated Drive Systems for reliable, self-contained power and performance. Inset I-Beam front rail and steel 3/8" front forks and 3 1/2" trail for smooth directional changes. More compact than most Stand-Ons, the Revolt SD is shorter in length for better in and around cutting. Patented Dual Deck Support Isolators, paired with deck wear pads, minimizes damage from any side impact.

Standard features

-Residential Version

-Dual Hydro-Gear 2800 Performance Integrated Drive Systems

-3/8 Steel Front Forks and 3 1/2 Trail for Smooth Directional Change

-Patented Suspension Platform

-Quick Remove Operator Pad

-34 and 42 Width Cut Options

-3/16 or 7-Gauge All Steel, Formed and Welded Deck with Reinforced Edges

-PEER, Maintenance-Free Spindles

-Side Mount Deck Lift Adjustment

-Three-Position Speed Control

-Electric PTO

-Reaper Tires

Engine options

Kawasaki 603cc, 18.5hp Air-Cooled FS600

Dimensions

- Cutting Width: 34 in.

- Weight: 722 lb.

- Overall Height / Length: 47 in. / 63.75 in.

- Chute Up / Chute Down Width: 34.5 in. / 46.5 in.

Features

- Transmission: Hydro-Gear® 10cc Integrated Transaxle

- Deck Thickness: 3/16" or 7-Gauge Thick Solid Steel

- Cutting Height: 2" - 5" with Deck Height Control System

- Lift & Height Adjustment: Manual Lift

- Rear Tires / Front Tires: 23x9-12 Reaper® / 13x6.5-6 Smooth

- Fuel: 6.5 Gallons, Unleaded Gasoline

- Ground Speed (Forward): Up To 9 mph

Product specs

Engine

- Engine Manufacturer: Kawasaki

- Horsepower: 18.5 HP

- Engine Type: Air-Cooled FS600

- Displacement: 603 cc

General

- Transmission: 2800 Hydro-Gear® 10cc Integrated Transaxle

- Wheel Size: Front: 13x6.5-6 Smooth; Rear: 23x9-12 Reaper

- Fuel Capacity: 6.5 gallons

Deck

- Deck Size: 34 inches

- Discharge Type: Side

Width	Weight	Height	Length
34 Inch	722 Pounds	47 Inch	0 Inch
