Description

We've Kicked The Maverick Up A Notch

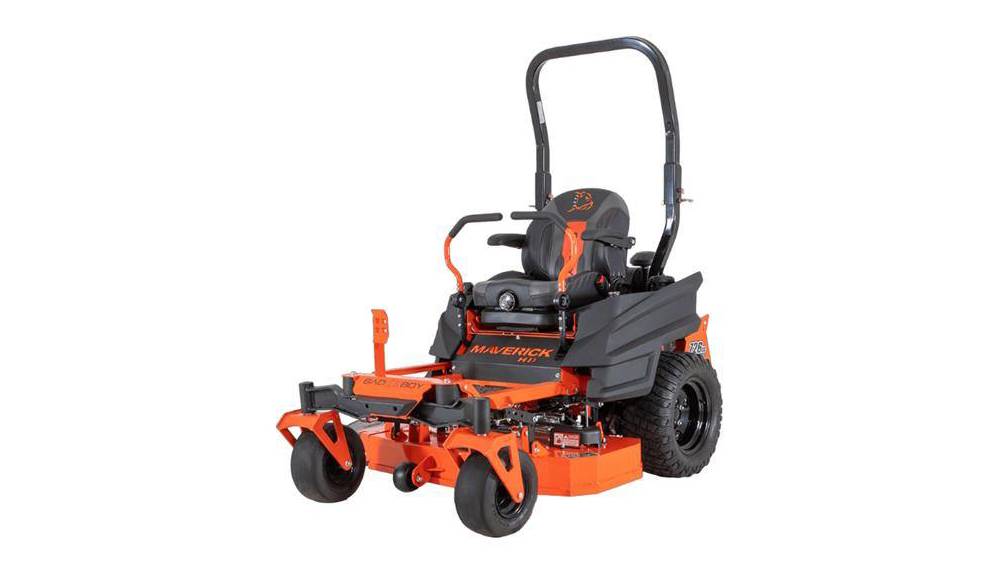

We've turned the Maverick into an entry-level pro! We gave the Maverick HD Commercial Zero Turn Mower larger Hydro-Gear® drives, bigger engine options, and a premium suspension seat for all-day, every-day performance. There's also a compact, gate-entering 42" model that can get in and out of almost anywhere, leaving behind a great cut like only a Bad Boy Mower can.

Pro Performance That Goes Anywhere

The Maverick HD's dual high-performance Hydro-Gear 3400 Integrated Drive System provides reliable, self-contained power and performance. Our patented independent, suspended cast front I-Beam rails support 3/8" Steel Front Forks that lead the industry in strength and durability. Available in five engine options and four deck sizes that can squeeze you into almost anywhere.

Standard Features

- Dual Hydro-Gear® 3400 Series Commercial-Grade Integrated Drive Systems

- Patented EZ-Ride® System

- Patented Independent Front Suspension

- I-Beam Front Rails

- 3/16" or 7-Gauge All Steel, Formed and Welded Deck with Reinforced Edges

- Heavy-Gauge, All-Steel, All-Welded Frame

- Industry-Leading 3/8" Steel Front Forks

- PEER, Maintenance-Free Spindles

- Deck Lift Pedal with Deck Dial Adjustment

- Seat Lifts for Easy Maintenance and Cleaning

- Premium Adjustable Suspension Seat

- No-Flat Front Tires

- Adjustable Steering Arms

- Electric PTO

- Striping Kit

Engine Options

- Engine: Kawasaki 726cc, 23.5hp Air-Cooled 90° V-Twin FX730

Dimensions

- Cutting Width: 60"

- Weight: 1073 lbs.

- Overall Height/Length: 49"/80"

- Chute Up/Chute Down Width: 64"/73"

Features

- Suspension: E-Z Ride® Patented Compression Rear Suspension with Independent Front Suspension Rails

- Transmission: 3400 Hydro-Gear® 12cc Integrated Transaxle

- Deck Thickness: 3/16" or 7-Gauge Thick Solid Steel

- Cutting Height: 1.5" - 4.5" with Deck Height Control System

- Lift and Height Adjustment: Foot-Assist Manual Lift with Dial-Style Height Adjustment. Optional Electric Lift.

- Rear Tires/Front Tires: 23x11-12 Reaper® / 13x6.5-6 Smooth No Flat Front

- Fuel: 6.5 Gallons, Unleaded Gasoline

- Ground Speed (Forward): Up To 9 mph

Product Specs

Engine

- Engine Manufacturer: Kawasaki

- Horsepower: 23.5 HP

- Engine Type: Air-Cooled 90° V-Twin FX730

- Displacement: 726 cc

General

- Transmission: 3400 Hydro-Gear® 12 cc Integrated Transaxle

- Wheel Size: Front: 13x6.5-6 Smooth No Flat; Rear: 23x11-12 Reaper®

- Fuel Capacity: 6.5 gallons

Deck

- Deck Size: 60 inches

- Discharge Type: Side

Width	Weight	Height	Length
60 Inch	1073 Pounds	49 Inch	0 Inch
